Questions? Need Info? Phone: 800-475-4181

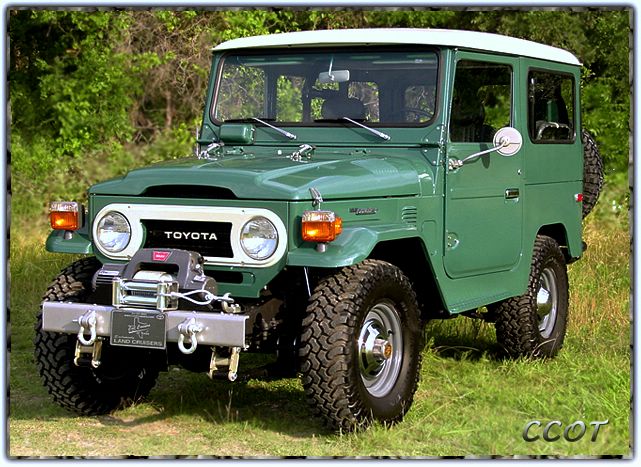

"Hell for Stout" Bumper by CCOT - FJ40 FJ45

Bumper HFS™

































  • Designed to be the Strongest & Best Looking FJ40 Bumper on the Market!
  • Essential for the serious rock climber or extreme off-road enthusiast.
  • Tough and absolute protection for your Cruiser.
  • Precision Laser cut slots and holes for unequaled quality - 3/8" thick steel
  • Easy Bolt on installation to existing holes. CCOT EXCLUSIVE PRODUCT!

  • HFS™ 8274 - Shackled Bumper - Silver
    HFS™ 8274 - Shackled Bumper - Silver
  • Click to Enlarge Image
  • Order below
  • HFS™  8274 - Shackled Bumper - Black
    HFS™ 8274 - Shackled Bumper - Black
  • Click to Enlarge Image
  • Order below
  • HFS™  8274 - Shackled Bumper - Silver
    HFS™ 8274 - Shackled Bumper - Silver
  • Click to Enlarge Image
  • Order below
  • HFS™  8274 - Shackled Bumper - Black
    HFS™ 8274 - Shackled Bumper - Black
  • Click to Enlarge Image
  • Order below
  • HFS™  8274 - Shackled Bumper -  Black
    HFS™ 8274 - Shackled Bumper - Black
  • Click to Enlarge Image
  • Order below
  • Bumper  Features
    Bumper Features
  • Click to Enlarge Image
  • 3/8" thick steel
  • Order below
  • Bumper Underside - Chain Slots
    Bumper Underside - Chain Slots
  • Click Image to Enlarge
  • 2 ea. Underside Laser Cut Chain Slots
  • "HFS" 8274 - Feedback - David O'Niell
  • Bumper ~ HFS™  ~ Shackled w/8274 Winch Plate
    Bumper ~ HFS™ ~ Shackled w/8274 Winch Plate

    Fits FJ40 FJ45 - HFS™ Bumper, made to be stronger than the legendary Warn 8274 Winch

    Bumper Features

    "Universal Winch Mounting Plate/Bolt Pattern" fits most Warn, Ramsey and Superwinches. Horizontal winches need rotating collars to mount on bumper's vertical winch mount face plate. Measure your winch mount bolt pattern to be 10.0" x 4.5" (254mm x 114.3mm).

    Measure the width of your winch - must fit between FJ40 Frame Rails - Click.

  • HFS Bumper fits perfectly with a Warn 8274 and Saginaw PS Conversion combo.
  • Winch plate and bumper channel are both 3/8" thick & precision Laser Cut.
  • Install Hawse or Roller Fairleads, both bolt on perfectly.
  • Easy Bolt on installation to factory (gusset plates) holes.
  • This is an ULTRA STRONG 3/8" steel channel trail Bumper! Weight - 58 lbs.
  • Bumper channel is stronger than vehicle frame
  • Bumper greatly increases FJ40's approach angle.
  • Bumper is wide enough for protection but narrow enough for tight trail turns. w - 39 3/4"
  • Designed for strength, tight trail clearance and clean / good looks.
  • Powder Coated ~ Silver / Pewter or Black
  • Break press forming lines may be slightly visible under finish.
  • 2 D-Ring Shackle with 3/4" Screw-Pins hanging from a pair of 1" welded steel hangers
  • Designed for strength, tight trail clearance and clean look.
  • HFS Bumper has two laser cut chain slots on bottom side of channel.
  • Angular cut chain link slots hold chains up to 3/8" in diameter.
  • Strong chain slots prevent link slippage.
  • Chain slots are smartly positioned underneath, not to interfere with winch operation.
  • No License Plate Holes - Drill to Suit
  • This is the "Toughest FJ40 Bumper Available"!
  • Hell-for-Stout Bumper ~ Field Tested by Nolen Grogan ~ w/Saginaw PS System
  • Regular price: $294.81
    Sale price: $239.94
    HFS™ 8274 - Bumper

    Select:
    Top View of HFS™ 8274 Bumper
    Top View of HFS™ 8274 Bumper
    Bumper - HFS™ -  Shackled - No Winch Plate
    Bumper - HFS™ - Shackled - No Winch Plate
    Bumper - HFS™ - Shackled  -  No Winch Plate
    Bumper - HFS™ - Shackled - No Winch Plate

    Fits FJ40 FJ45 - HFS Bumper

  • Install Hawse or Roller Fairleads, both bolt on perfectly.
  • Easy Bolt on installation to factory (gusset plates)holes.
  • ULTRA STRONG 3/8" thick steel channel! Weight - 50 lbs.
  • Bumper channel is stronger than vehicle frame
  • Bumper greatly increases FJ40's approach angle.
  • Wide enough for protection - Narrow enough for tight trail turns. w - 39 3/4"
  • Powder-coated for durability and great looks
  • Powder Coated ~ Silver / Pewter or Black
  • Break press forming lines may be slightly visible under finish.
  • 2 Shackles (3/4") with Screw-Pins and 1" welded hangers
  • Designed for strength, tight trail clearance and clean / good looks.
  • HFS Bumper has two laser cut chain slots on bottom side of channel.
  • Angular cut chain link slots hold chains up to 3/8" in diameter.
  • Chain slots are smartly positioned underneath, not to interfere with winch operation.
  • No License Plate Holes - Drill to Suit
  • This is the "Toughest FJ40 Bumper Available"!
  • Hell-for-Stout Bumper ~ Field Tested by Nolen Grogan ~ w/Saginaw PS System
  • Click for more "Hell for Stout" Bumper Pics

    Note: If selected - System will add cost of winch Channel to base price of Bumper.

    Please order Fairlead separately, if needed.
  • Regular price: $254.71
    Sale price: $194.83
    HFS™-SHACK-BUMPER

    Select:
    Bumper Mounting Tip
    Bumper Mounting Tip
  • FJ40 FJ45
  • Loosen Bumper Gusset Plates
  • Align Bumper Bolt Holes with Gusset Plate Holes
  • Drop in Bolts & Tighten all together
  • Bumper HFS Dimensions
    Bumper HFS Dimensions
    License Plate Front "T" Bracket w/SST Hardware
    License Plate Front "T" Bracket w/SST Hardware
  • CCOT Exclusive License Plate "T" Bracket / Holder
  • Bracket is designed and located to minimize the presence of plate.
  • Holder Mounts to factory bolt hole of frame rail.
  • No drilling required and Stainless Steel (SST) Hardware included.



    Click to Enlarge



    Click to Enlarge
  • Regular price: $18.61
    Sale price: $14.91
    Plate-T-Brkt
    License Plate Holder - Front -  FJ40 - by  CCOT
    License Plate Holder - Front - FJ40 - by CCOT
  • CCOT Front License Plate Holder
  • Original Style License Plate Holder
  • Factory mounting hole pattern
  • Powder Coated w/Pebble Grain Black Satin Finish
  • Fits FJ40/45/55 Original or HFS Bumpers
  • $27.41
    Licns-Hldr-Frt-CCOT
    New Bumper Bolts  ~  A Great Finishing Touch!
    Winch Channel (HFS) ~  Roller, CCOT
    Winch Channel (HFS) ~ Roller, CCOT
  • HFS ("Hell For Stout") winch Channel
  • Fit Stock FJ40 & FJ45s
  • Fits perfectly between Frame Rails
  • Mounts to existing factory bolt holes
  • Ideal for Planetary Geared Winch Mounting
  • Fits Warn, Ramsey, Super Winch ~ More
  • Does not fit Warn 8274
  • Uses Warn (or similar) Roller Fairlead (not included)
  • Warn Fairlead Measures: 11"W x 5"H x 3/4" Deep
  • CCOT EXCLUSIVE PRODUCT!


    Optional Bolt Kit Includes:
  • 4 ea. Super High-Strength Anchore Bolts - ISO Grade 10.9
  • 2 ea. Front Corner Bolts - ISO Grade 8.8
  • 6 ea. All Metal Locknuts
  • 12 Flat Washers

    Note: System will add $9.93 to base price for Winch Channel Bolt Kit.
  • Regular price: $129.71
    Sale price: $89.81
    CCOT-60368-Roller

    Select:
    Winch Channel (HFS) ~ Hawse, CCOT
    Winch Channel (HFS) ~ Hawse, CCOT
  • HFS ("Hell For Stout") winch Channel
  • Fit Stock FJ40 & FJ45s
  • Fits perfectly between Frame Rails
  • Mounts to existing factory bolt holes
  • Ideal for Planetary Geared Winch Mounting
  • Fits Warn, Ramsey, Super Winch ~ More
  • Does not fit Warn 8274
  • Uses Warm (or similar) Hawse Fairlead (not included)
  • CCOT EXCLUSIVE PRODUCT!


    Optional Bolt Kit Includes:
  • 4 ea. Super High-Strength Anchore Bolts - ISO Grade 10.9
  • 2 ea. Front Corner Bolts - ISO Grade 8.8
  • 6 ea. All Metal Locknuts
  • 12 Flat Washers

    Note: System will add $9.93 to base price for Winch Channel Bolt Kit.
  • Regular price: $119.64
    Sale price: $79.81
    CCOT-60368-Hawse

    Select:
    Fairlead, Hawse, Warn
    Fairlead, Hawse, Warn
    For winches over 4000 lbs./1814 kgs.
    Mounting holes Measure
    10" ~ Center to Center.
    out of stock ~ no longer available
    Regular price: $58.95
    Sale price: $49.72
