Greasable Polyurethane Bushings

Bushings

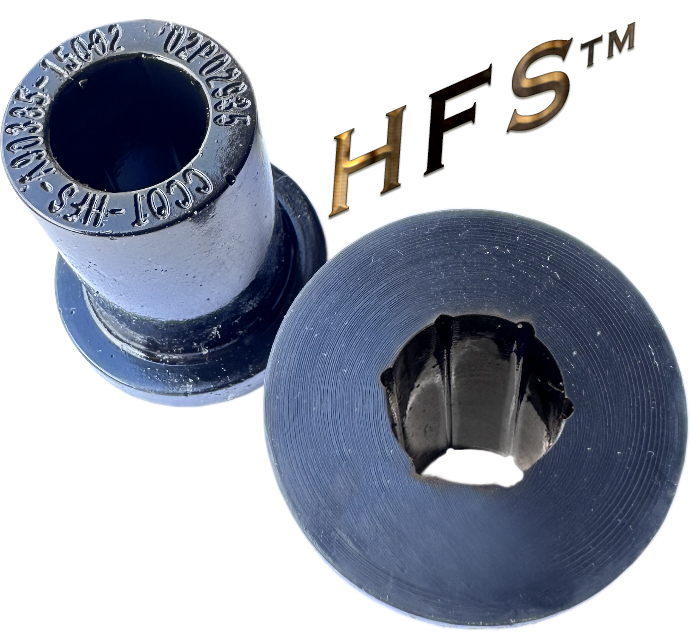

Bushings HFS Poly - 24ea - 40 Series - '58-7/80
Bushings HFS Poly - 24ea - 40 Series - '58-7/80
....NEW !!! A CCOT Exclusive - HFS polyurethane spring bushings that are engineered for heavy off-road use, control, long life and comfort. You will feel the difference in positive handling and control of the new HFS Poly bushing. HFS Poly bushings have a shore A durometer rating of 80 and tensile strength near 5000psi. The typical durometer measurement will vary between 65 (soft) and 88 (hard). The typical bushing tensile strength measurement should not be lower than 2500 psi. Suspension engineers concocted the proprietary HFS urethane formula to work in combinations with heavy duty leaf springs (like HFS leaf springs) that require more wheel articulation / travel and comfort for street use. HFS polyurethane spring bushings have grease grooves to uniformly distribute grease across the entire inner bushing surface.

  • The New HFS polyurethane spring bushings deliver what the 40 Series was designed to take and more!
  • $76.11
    HFS-24-A90385-150200
    Color:

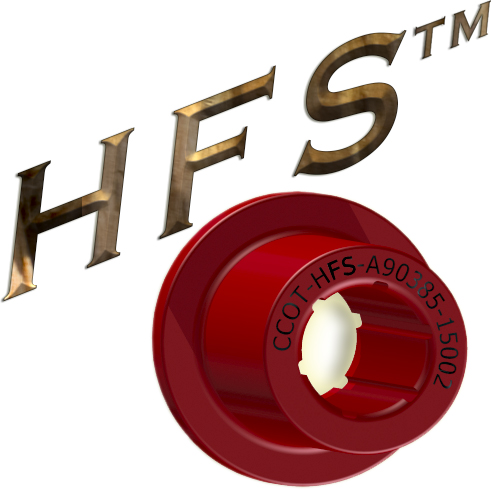

    Bushings HFS Poly - 12ea - 40 Series - '58-7/80
    Bushings HFS Poly - 12ea - 40 Series - '58-7/80
    .... NEW !!! A CCOT Exclusive - HFS polyurethane spring bushings that are engineered for heavy off-road use, control, long life and comfort. You will feel the difference in positive handling and control of the new HFS Poly bushing. HFS Poly bushings have a shore A durometer rating of 80 and tensile strength near 5000psi. The typical durometer measurement will vary between 65 (soft) and 88 (hard). The typical bushing tensile strength measurement should not be lower than 2500 psi. Suspension engineers concocted the proprietary HFS urethane formula to work in combinations with heavy duty leaf springs (like HFS leaf springs) that require more wheel articulation / travel and comfort for street use. HFS polyurethane spring bushings have grease grooves to uniformly distribute grease across the entire inner bushing surface.

    The New HFS polyurethane spring bushings deliver what the 40 Series was designed to take and more!
    $54.71
    HFS-12-A90385-150200
    Color:
    Bushings - Graphite / Rubber - 24ea - 40 Series -'58-7/80 - CCOT
    Bushings - Graphite / Rubber - 24ea - 40 Series -'58-7/80 - CCOT
  • CCOT Exclusive - Black-Graphite Rubber Spring Bushings
  • Graphite Rubber Spring Bushings self-lubricate to stop squeaks
  • Graphite Rubber Spring Bushings reduce heat generated by pivoting parts
  • Like OEM Rubber Bushings, Graphite Rubber Spring Bushings deliver a soft ride
  • Graphite helps to extend bushing life.
  • Fits Front or Rear Axle - Years 1958 to 7/'80

    NOTE: CCOT's New Graphite Rubber Spring Bushings are composed of Natural Rubber (NR) + Nitrile-Butadiene Rubber (NBR) + 5% Graphite producing an OEM style bushing that is shockproof, heat resistant, oil resistant and longer wearing than OEM. CCOT's Graphite Rubber Spring Bushings deliver a softer and squeakless ride at a great new price!
  • $37.20
    A10385-95002
    Bushings - Graphite / Rubber - 12ea - 40 Series -'58-7/80 - CCOT
    Bushings - Graphite / Rubber - 12ea - 40 Series -'58-7/80 - CCOT
  • CCOT Exclusive - Black-Graphite Rubber Spring Bushings
  • Graphite Rubber Spring Bushings self-lubricate to stop squeaks
  • Graphite Rubber Spring Bushings reduce heat generated by pivoting parts
  • Like OEM Rubber Bushings, Graphite Rubber Spring Bushings deliver a soft ride
  • Graphite helps to extend bushing life.
  • Fits Front or Rear Axle - Years 1958 to 7/'80

    NOTE: CCOT's New Graphite Rubber Spring Bushings are composed of Natural Rubber (NR) + Nitrile-Butadiene Rubber (NBR) + 5% Graphite producing an OEM style bushing that is shockproof, heat resistant, oil resistant and longer wearing than OEM. CCOT's Graphite Rubber Spring Bushings deliver a softer and squeakless ride at a great new price!
  • $19.80
    A10385-95002
    Bushing - 1ea  - 40 Series  - 1958-7/80 - TOYOTA
    Bushing - 1ea - 40 Series - 1958-7/80 - TOYOTA
  • 40 Series Toyota Original Factory Bushing
  • Fits Front or Rear Axle - Years 1958 to 7/'80
  • Color - Black Rubber - Sold individually
  • $3.68
    10385-95002
    Bushings - Graphite / Rubber - 24ea  - 18mm Pin - CCOT
    Bushings - Graphite / Rubber - 24ea - 18mm Pin - CCOT
  • CCOT Exclusive - Black-Graphite Rubber Spring Bushings
  • Graphite Rubber Spring Bushings self-lubricate to stop squeaks
  • Graphite Rubber Spring Bushings reduce heat generated by pivoting parts
  • Like OEM Rubber Bushings, Graphite Rubber Spring Bushings deliver a soft ride
  • Graphite helps to extend bushing life.
  • Fits 40 Series, 60 Series, 62 Series, 62 Series - 8/'80-1/'90
  • Fits 55 Series - 1968 - 7/80
  • Fits Front or Rear Axle w/18mm Pin
  • Color - Black Rubber
  • THESE ONLY FIT OEM STYLE SHACKLES

    NOTE: CCOT's New Graphite Rubber Spring Bushings are composed of Natural Rubber (NR) + Nitrile-Butadiene Rubber (NBR) + 5% Graphite producing an OEM style bushing that is shockproof, heat resistant, oil resistant and longer wearing than OEM. CCOT's Graphite Rubber Spring Bushings deliver a softer and squeakless ride at a great new price!
  • $44.41
    A10389-98002
    Bushings - Graphite / Rubber - 12ea  - 18mm Pin - CCOT
    Bushings - Graphite / Rubber - 12ea - 18mm Pin - CCOT
  • CCOT Exclusive - Black-Graphite Rubber Spring Bushings
  • Graphite Rubber Spring Bushings self-lubricate to stop squeaks
  • Graphite Rubber Spring Bushings reduce heat generated by pivoting parts
  • Like OEM Rubber Bushings, Graphite Rubber Spring Bushings deliver a soft ride
  • Graphite helps to extend bushing life.
  • Fits 40 Series, 60 Series, 62 Series, 62 Series - 8/'80-1/'90
  • Fits 55 Series - 1968-7/80
  • Fits Front or Rear Axle w/18mm Pin
  • Color - Black Rubber
  • THESE ONLY FIT OEM STYLE SHACKLES

    NOTE: CCOT's New Graphite Rubber Spring Bushings are composed of Natural Rubber (NR) + Nitrile-Butadiene Rubber (NBR) + 5% Graphite producing an OEM style bushing that is shockproof, heat resistant, oil resistant and longer wearing than OEM. CCOT's Graphite Rubber Spring Bushings deliver a softer and squeakless ride at a great new price!
  • $23.40
    A10389-98002
    Bushing - 1ea - 18mm Pin Fits 40/60/62 Series - TOYOTA
    Bushing - 1ea - 18mm Pin Fits 40/60/62 Series - TOYOTA
  • Toyota Original Factory Bushing
  • Fits 40/60/62 Series 8/'80-1/'90
  • Fits Front or Rear Axle w/18mm Pin
  • Color - Black Rubber - Sold individually
  • $10.29
    10389-98002

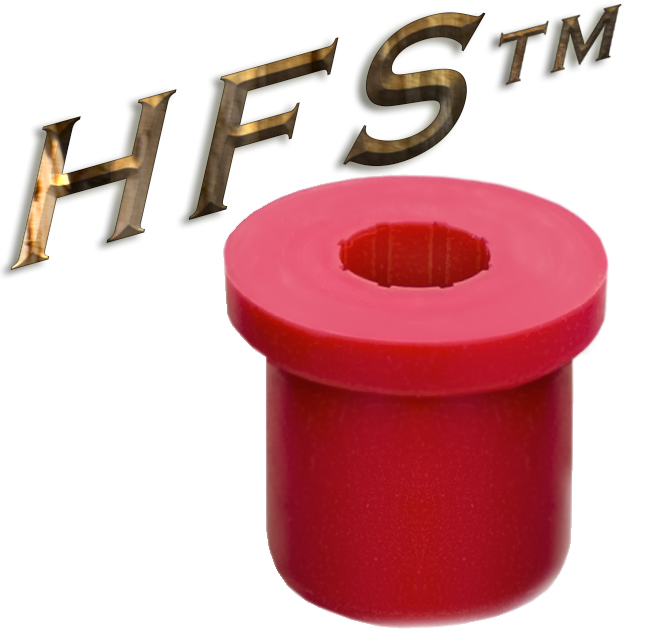

    Bushings HFS Poly - 24ea - 40/60/62 Series 8/'80 - 1/'90
    Bushings HFS Poly - 24ea - 40/60/62 Series 8/'80 - 1/'90
  • NEW !!! A CCOT Exclusive - HFS Polyurethane Spring Bushings
  • Fits 40 Series, 60 Series, 62 Series, 8/'80-1/'90
  • Fits 55 Series - 1968 - 7/80
  • Bushing for Factory size 18mm spring bolts

    HFS polyurethane spring bushings that are engineered for heavy off-road use, control, long life and comfort. You will feel the difference in positive handling and control of the new HFS Poly bushing. HFS Poly bushings have a shore A durometer rating of 80 and tensile strength near 5000psi. The typical durometer measurement will vary between 65 (soft) and 88 (hard). The typical bushing tensile strength measurement should not be lower than 2500 psi. Suspension engineers concocted the proprietary HFS urethane formula to work in combinations with heavy duty leaf springs (like HFS leaf springs) that require more wheel articulation / travel and comfort for street use. HFS polyurethane spring bushings have grease grooves to uniformly distribute grease across the entire inner bushing surface.

    The New HFS polyurethane spring bushings deliver what the Land Cruiser was designed to take and more!
  • $86.71
    HFS-24-A10389-98002
    Color:

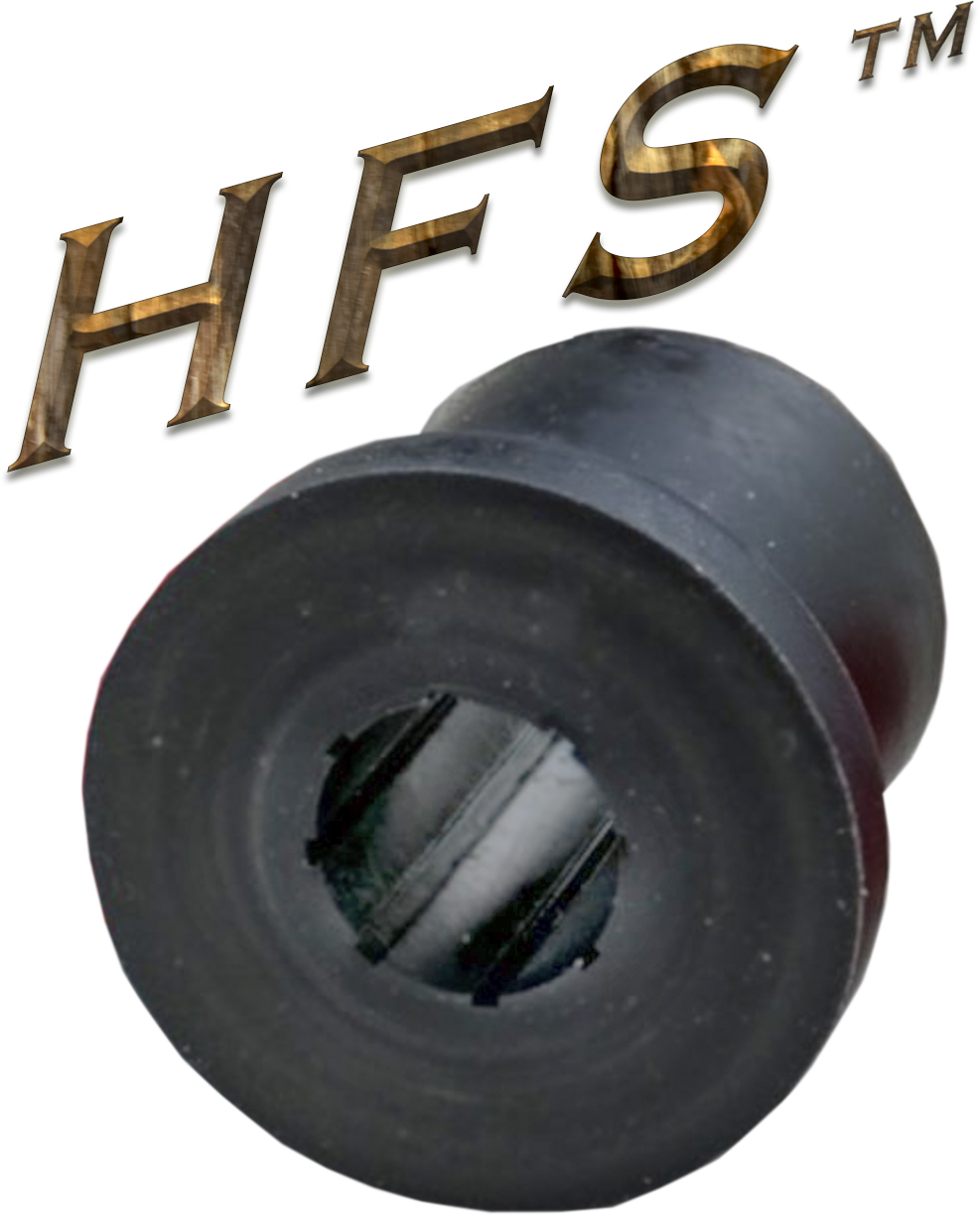

    Bushings HFS Poly - 12ea - 40/60/62 Series 8/'80 - 1/'90
    Bushings HFS Poly - 12ea - 40/60/62 Series 8/'80 - 1/'90
  • NEW !!! A CCOT Exclusive - HFS Polyurethane Spring Bushings
  • Fits 40 Series, 60 Series, 62 Series, 8/'80-1/'90
  • Fits 55 Series - 1968 - 7/80
  • Bushing for Factory size 18mm spring bolts

    HFS polyurethane spring bushings that are engineered for heavy off-road use, control, long life and comfort. You will feel the difference in positive handling and control of the new HFS Poly bushing. HFS Poly bushings have a shore A durometer rating of 80 and tensile strength near 5000psi. The typical durometer measurement will vary between 65 (soft) and 88 (hard). The typical bushing tensile strength measurement should not be lower than 2500 psi. Suspension engineers concocted the proprietary HFS urethane formula to work in combinations with heavy duty leaf springs (like HFS leaf springs) that require more wheel articulation / travel and comfort for street use. HFS polyurethane spring bushings have grease grooves to uniformly distribute grease across the entire inner bushing surface.

  • The New HFS polyurethane spring bushings deliver what the Land Cruiser was designed to take and more!
  • $59.71
    HFS-12-A10389-98002
    Color:
    Greaseable ~ Heavy Duty  Shackles
  • Greaseable Gun-drilled bolts
  • Zerks and nylock nuts
  • Best looking shackles on the market!
  • FJ40/45 Greaseable Lift Shackles, Click
  • FJ40/45 Greaseable OEM Style Shackles, Click
  • FJ60/62 Greaseable Lift Shackles, Click
  • Greasable Shackle Bolts -  58-7/80 -  5/8" Bolts
    Greasable Shackle Bolts - 58-7/80 - 5/8" Bolts
  • 5/8" Greasable Bolts for Aftermarket Shackles and HFS Shackles
  • Fit 58-7/'80 ~ FJ40 ~ FJ45 ~ FJ55
  • High Quality Gun-drilled Bolts
  • Grease Bolts complete with zerks & nylock nuts.
  • Select ~ Set of 4 Fits One Axles
  • Select ~ Set of 8 Fits Two Axles

    Installation: Nyloc nuts should be installed just snug tight to shackles. Depending on your shackle style, additional torgue to nyloc nut could bend your shackle.

    Note: System will add $32 to base price for set of 8 bolts.

  • $38.91
    S10187-S10189

    Select:
    Greasable Shackle Bolts -  8/80-90 - 18mm Bolts
    Greasable Shackle Bolts - 8/80-90 - 18mm Bolts
  • 18mm Greasable Bolts for Aftermarket Shackles and HFS Shackles
  • Fit 8/80 to 1990 ~ FJ40 ~ FJ45 ~ FJ60 ~ FJ62
  • Bolts also fit FJ55 ~ 1968 to 7/'80
  • High Quality Gun-drilled Bolts
  • Grease Bolts complete with zerks & nylock nuts.
  • Select ~ Set of 4 Fits One Axles
  • Select ~ Set of 8 Fits Two Axles

    Installation: Nyloc nuts should be installed just snug tight to shackles. Depending on your shackle style, additional torgue to nyloc nut could bend your shackle.

    Note: System will add $45 to base price for set of 8 bolts.
  • $54.99
    S10197-S10204

    Select:
