Home > CCOT's New Products > Lift Kit - Springs - HFS™

Heavy Duty "Hell for Stout™ " Lifts with "Soft Ride"

Lift Kit - Springs - HFS™































The Freeborn Red FJ40 (above) is fitted with CCOT's 4" HFS™ Lift Kit and 1½" HFS™ "Barbell Shackle".

Tires are BF Goodrich Radial Mud Terrain T/As (33" x 10½" x 15") mounted on factory wheels.

HFS™ Springs are designed and fitted exclusively for the Vintage Land Cruiser!

HFS™ springs have superior design features to Lift and Soften Ride.

HFS™ Springs are engineered slightly longer to push shackles out and away from axels allowing shackles to swing as springs flex. Proper spring shackle angle creates a much softer ride, reduced leaf stress and improves spring durability.

To maintain the "Ideal Shackle Angle" requires a much heavier and beefier spring stack.

HFS™ Lift Springs are known to be Heavier and "Softer" riding than any other Land Cruiser Lift Spring on the Market.

Shackle Angle - ideal
Shackle Angle - ideal
HFS Springs push shackles out and away from axel allowing shackle to swing & flex. Proper shackle angle creates a softer ride and improves steering control.
HFS™  Springs - Superior  Design & Features
HFS™ Springs - Superior Design & Features


  • HFS the Very Best, Click for Details
  • Hell4Stout.com ~ Lift
    Hell4Stout.com ~ Lift


  • Click Photo to Enlarge

  • HFS Lift w/ "HFS 8274" Shackled Bumper
  • Springs ~ FJ40x HFS™ Extreme ~  Lift Springs
    Springs ~ FJ40x HFS™ Extreme ~ Lift Springs


  • HFS™ 4" Extreme Springs on '06 Calendar 40

  • HFS Springs Lift and Soften Ride.

  • "HFS" Spring Features, Click
  • 4WD Toyota Owners
    HFS™ Lift Kit - FJ40x HFS™  Extreme - 4" Lift Kit
    HFS™ Lift Kit - FJ40x HFS™ Extreme - 4" Lift Kit


  • The rustic green FJ40 ~ fitted with CCOT's 4" HFS™ Lift Kit and 1½" HFS™ "Barbell Shackle".

  • Tires are BF Goodrich Radial Mud Terrain T/As (33" x 10½" x 15") mounted on factory wheels.
  • Lift Kit - FJ40x HFS Extreme - 1961-7/80 - 4" Lift Kit
    Lift Kit - FJ40x HFS Extreme - 1961-7/80 - 4" Lift Kit
  • Fits FJ40 & BJ40 - 1961-7/80
  • HFS Superior Spring Design Features, Click for Details
  • Lift height may vary from 3" to 4" depending on set-up.
  • (2) CCOT-HFS-40Fx Front Leaf Springs
  • (2) CCOT-HFS-40Rx Rear Passenger Leaf Springs
  • (8) U-Bolts - Yellow Zinc w/Nuts & Washers, Front & Rear Axles, - FJ40
  • (2) HFS4055875 HFS Front Shocks w/Boots
  • (2) HFS4055650 HFS Rear Shocks w/Boots
  • Shocks require use of your old pins
  • (4) HFS Lift Barbell Shackles (1.5") with Greasable Gun-drilled bolts, zerks and nylock nuts.

    NEW ! and In the Kit !!!...CCOT Exclusive - HFS polyurethane spring bushings that are engineered for heavy off-road use, control, long life and comfort. You will feel the difference in positive handling and control of the new HFS Poly bushing. HFS Poly bushings have a shore A durometer rating of 80 and tensile strength near 5000psi. The typical durometer measurement will vary between 65 (soft) and 88 (hard). The typical bushing tensile strength measurement should not be lower than 2500 psi. Suspension engineers concocted the proprietary HFS urethane formula to work in combinations with heavy duty HFS leaf springs that require more wheel articulation / travel and comfort for street use. HFS polyurethane spring bushings have grease grooves to uniformly distribute grease across the entire inner bushing surface.

    See "Toyota Trails" Article featuring CCOT's HFS™ Lift.

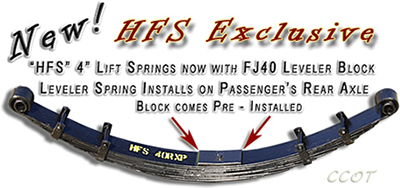

    Note: The "HFS™ Leveler Block" included in this kit, cures the Driver's Side Lean of most FJ40s. CCOT designed and extensively tested our HFS Leveler Block FORMULA on many FJ40s. We found that our HFS Leveler Block cured the lean on all test vehicles. Block is pre-installed on top of the rear passenger's side spring stack. The "Leveler Block" is an exclusive CCOT product.

    "HFS" & "BDS" Spring Installation Instructions, Click

    View "Hell for Stout" Spring Warranty, Click

    Mount Front Springs with long side away or out from axle.

    Mount Rear Springs with long side away or out from axle and Leveler Block spring on right rear side.


    HFS Springs are "Lift Springs" not "Overload Springs".
  • Regular price: $1,468.17
    Sale price: $1,324.47
    HFS-Lift-Kit-FJ40x
    Shock Boots:
    Lift Kit - FJ40 HFS™ - Designer Lift Kit - 1961-7/80
    Lift Kit - FJ40 HFS™ - Designer Lift Kit - 1961-7/80


  • New - In response to Customer demand...

  • HFS™ Designer Lift fits FJ40 & BJ40 - 1961 to 7/'80

    The "HFS™ Designer Lift" Gives the Customer individual control of their desired lift height.

    The final lift height is controlled by the shackles that Customers choose.

    If Customer chooses the 1½" HFS™ "Barbell Shackle", then their lift height (over stock) will be approximately 3¼"

    If Customer chooses the 2½" HFS™ Barbell Shackle", then their lift height (over stock) will be approximately 3¾"

  • Actual lift hight may vary if 40 is not 100% stock.

    HFS Superior Spring Design Features.

    Lift Kit Includes:
    (2ea) CCOT-HFS40F Front Leaf Springs
    (2ea) CCOT-HFS40R Rear Leaf Springs - Right Rear Spring w/Leveler Block
    (2ea) HFS4055875 HFS Front Shocks w/ Boots
    (2ea) HFS4055620 HFS Rear Shocks Shocks w/ Boots
  • Shocks require use of your old pins
    (8ea) U-Bolts - Yellow Zinc w/Nuts & Washers, Front & Rear Axles
    (4ea) HFS™ Barbell Shackles
    (8ea) Greasable Shackle Bolts

    NEW ! and In the Kit !!!...CCOT Exclusive - HFS polyurethane spring bushings that are engineered for heavy off-road use, control, long life and comfort. You will feel the difference in positive handling and control of the new HFS Poly bushing. HFS Poly bushings have a shore A durometer rating of 80 and tensile strength near 5000psi. The typical durometer measurement will vary between 65 (soft) and 88 (hard). The typical bushing tensile strength measurement should not be lower than 2500 psi. Suspension engineers concocted the proprietary HFS urethane formula to work in combinations with heavy duty HFS leaf springs that require more wheel articulation / travel and comfort for street use. HFS polyurethane spring bushings have grease grooves to uniformly distribute grease across the entire inner bushing surface.

    See "Toyota Trails" Article featuring CCOT's HFS™ Lift.


    Note: The "HFS™ Leveler Block" included in this kit, cures the Driver's Side Lean of most FJ40s. CCOT designed and extensively tested our HFS Leveler Block FORMULA on many FJ40s. We found that our HFS Leveler Block cured the lean on all test vehicles. Block is pre-installed on top of the right side rear spring stack. The "Leveler Block" is an exclusive CCOT product.


    "HFS" & "BDS" Spring Installation Instructions

    View "Hell for Stout" Spring Warranty

    Mount Front Springs with long side away from axle toward the front of the vehicle.

    Mount Rear Springs with long side away from axle toward the rear of the vehicle and Leveler block spring on right rear side.

    HFS Springs are "Lift Springs" not "Overload Springs".

  • $1,149.00
    HFS-Designr-Lift-Kit-FJ40

    "Boots":
    Shackles:  Bushings:
    FJ40 ~ HFS™  ~ 2.5" Designer Lift Kit
    FJ40 ~ HFS™ ~ 2.5" Designer Lift Kit


  • The Olive Brown FJ40 is fitted with CCOT's HFS™ - Designer Lift Kit and 1½" HFS™ "Barbell Shackle".

  • lift height (over stock) will be approximately 3¼"

  • Actual lift height may vary if 40 is not 100% stock.

  • Tires are BF Goodrich Radial Mud Terrain T/As (33" x 10.5" x 15") mounted on factory wheels.

  • Order your HFS-Designr-Lift-Kit-FJ40 today!
  • Shackle Reversal & 4" HFS Lift Combo
    Shackle Reversal & 4" HFS Lift Combo


    Radically improve the steering and control of your FJ40 while taking on a much stronger look with CCOT's exclusive Shackle Reversal and 4" HFS Lift Combo. Reversing the front shackles and lifting your stock FJ40 to stand 3 to 4" taller, in our opinion, will be the best money ever spent to improve the overall look, function, control, safety and the pleasure of driving your 40 series.

    The 40 series factory suspension has the flexible spring shackle in the forward position of the front axle (behind the front bumper), therefore when the front tire collides with an obstacle, the energy of the impact travels rearward through the front spring to the solid spring hanger and then through the frame. As a result, control of the vehicle is greatly compromised. Reversing the locations of the solid rear spring hanger to the front of the front axle and relocating the flexible spring hanger to the rear of the front axle allows the impact of an obstacle to be better absorbed through the spring and the rear shackle, suspension. Swapping the front axle shackle locations creates a more natural suspension flow over the obstacle and at higher speeds, you'll experience a smoother ride and greatly improved control and handling. Your 40 series (with good tires) will unmistakably have greater control on the highway with less wandering, rutting or road walking. You will experience much greater steering control when hitting the brakes at higher speeds with CCOT's Suspension Correction Kit.

    CCOT's exclusive Shackle Reversal and 4" HFS Lift Combo consists of all items shown in photo. Note: Kit includes 4" HFS lift springs on the rear and 2" HFS lift springs on the front. The kit's taller solid front spring hanger levels the offset between the spring heights of the front and rear axles. We believe at the heart of CCOT's Shackle Reversal System (that improves driving stability and control) is the combination 4" springs on the rear and stiffer 2" HFS springs mounted on the front. The integration of the taller and stiffer solid front spring hanger and the stiffer front 2" springs increases control and stability when the front tire collides with an obstacle. The rear 4" HFS lift springs better absorb the impact while delivering a comfortable ride to passengers. Shocks and U-bolts sold separately.

    NOTE: System will add $82.00 to base price for kit that fits 8/'80 to 1984.
    $1,466.51
    ShackRevLift

    Select:
    Lift Kit - FJ40x HFS Extreme - 1961-7/80 -  Suspension Correction Lift Kit
    Lift Kit - FJ40x HFS Extreme - 1961-7/80 - Suspension Correction Lift Kit
    Finally, a lift spring kit to fit 40/42 Series with existing solid front shackles.

    This kit is for trucks that already have suspension correction front Reversal Spring Hangers installed.

    2ea. Front HFS lift springs have 2.5" of lift.

    2ea. Rear HFS Extreme lift springs have 4" of lift.

    This HFS spring combination will greatly counter the unlevel vehicle effect (high in front / low in rear) caused by the shackle reversal of the Suspension Correction Kit.

    HFS Suspension Correction Lift Spring kits fit FJ40 & BJ40/42. Lift height may vary depending on set-up.

    All HFS Springs have stock spring eyes diameter, bushing size and pin diameter.

    HFS Lift Springs are "Softer" riding than any other FJ40 Lift Spring.

    Lift Kit Includes:
    (2ea) CCOT-HFS-40F Front Leaf Springs (2.5" Lift Springs)
    (2ea) CCOT-HFS-40XR Rear Leaf Springs (4" Lift Springs)
    (2ea) HFS4055875 HFS Front Shocks w/ Boots
    (2ea) HFS4055620 HFS Rear Shocks w/ Boots
  • Shocks require use of your old pins
    (8) U-Bolts - Yellow Zinc w/Nuts & Washers, Front & Rear Axles
    (24) Imperial Black Graphite Rubber Spring Bushings... Bushings are composed of Natural Rubber (NR) + Nitrile-Butadiene Rubber (NBR) + 5% Graphite producing an OEM style bushing that is shockproof, heat resistant, oil resistant and longer wearing than OEM. CCOT's New Imperial Graphite Rubber Spring Bushings deliver a softer and squeakless ride.

    Solid front shackle not included. See Complete Shackle Reversal Kit




    "HFS" Spring Features, Click

    Want even more Lift? Install HFS Lift Shackles... a great looking accessory that adds more Lift if needed ~ HFS Shackles come in 1.5" and 2.5" heights...

    "HFS Leveler Block Pre-Installed on Passenger-side (right) Spring:" Cure the Driver's Side Lean of most FJ40s. CCOT designed and extensively tested our HFS Leveler Block FORMULA on many FJ40s. We found that our HFS Leveler Block cured the lean on all test vehicles. Block is pre-installed on top of the rear passenger's side spring stack. The "Leveler Block" is an exclusive CCOT product.

    See "Toyota Trails" Article featuring CCOT's HFS™ Lift.

    "HFS" & "BDS" Spring Installation Instructions, Click

    View "Hell for Stout" Spring Warranty, Click

    Mount Rear Springs with long side away from axle toward the rear of the vehicle.

    HFS Springs are "Lift Springs" not "Overload Springs".
  • Regular price: $1,420.62
    Sale price: $1,278.97
    HFS-Lift-Kit-FJ40-Susp-Correct
    Select:
    Leveler Block HFS™ -  FJ40 Lean Aid w/Pin
    Leveler Block HFS™ - FJ40 Lean Aid w/Pin

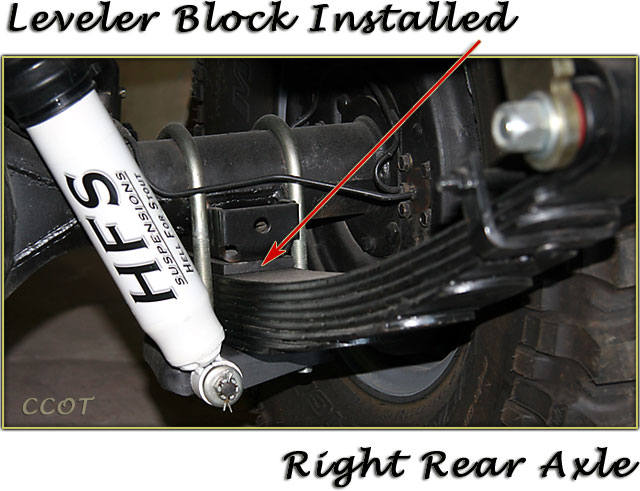

    "HFS Leveler Block" cures the Driver's Side Lean of most FJ40s. Leans vary from Cruiser to Cruiser depending on spring age and type. CCOT designed and extensively tested our HFS Leveler Block FORMULA on many FJ40s. We found that our HFS Leveler Block cured the lean on all test vehicles with new springs. Block w/Pin (4" x 3/8") installs on top of the rear passenger's side spring stack. Add HFS Leveler Block to top of spring stack (like an additional top leaf) and bolt down with spring center pin.

    Note: The leveler block pin head diameter is 9/16"

    The threaded pin bolt diameter is 3/8"

    The "Leveler Block" is an exclusive CCOT product.


    Note: One Customer with a 1964 FJ40 had a lean on the Passenger's side (instead of the Driver's side) and had to install his leveler block on the rear Driver's side to level his vehicle. In his case, the rear spare tire rack was on the Passenger's side (opposite of later models) instead of the Driver's side. So, the theory is that the block installs on the rear spring on the opposite side of the lean and in his case the opposite side of his rear tire rack.

    Blue FJ40 pictured below has CCOT Leveler Block installed. see "NO LEAN"



    Click Image
    $22.61
    LevelerBlock
    Shims ~ For Lifts ~ HFS
    Shims ~ For Lifts ~ HFS
  • Ideal Shims for 1" to 4" Lifts
  • HFS Spring Shims counter problems Lifts may cause.
  • Click to visit HFS Shim Page
  • HFS™ Shock w/New Decals
    HFS™ Shock w/New Decals
  • Choose Boot Colors ~ Red, Black or Blue
  • New HFS™ Decal ~ Black, White & with Drop Shawdows
  • Position & Install Decals after installation.
  • Click to visit HFS Shock Page
  • Greasable Shackle Bolts
    Greasable Shackle Bolts
    Bushings ~ 3 Poly Colors
    Bushings ~ 3 Poly Colors
  • Choose Bushing Colors ~ Red, Black or Blue
  • Click to visit Poly Bushing Page
  • "Related Items"
    "Related Items"
  • HFS Shackles add more Lift & Great Looks!
  • Click to visit "HFS" Lift Shackle Page
  • HFS™ Springs, Lifts & Shocks are Overbuilt
    HFS™ Springs, Lifts & Shocks are Overbuilt


    Hardcore Off-Road Performance

    HFS™ components are specifically formulated
    for early model Land Cruisers.

  • HFS™ - ultra tough suspension without harsh ride.
  • See "HFS" Lifts for FJ40, FJ60 and FJ62.
  • See "HFS" Springs for FJ40, FJ60 and FJ62.
  • See "HFS" Shocks.
  • See "HFS" Shims.
  • HFS Decal ~ Sticker
    HFS Decal ~ Sticker
  • Decal sticks to outside of window glass or vehicle body.
  • Black letters, oulined in white with gray drop shadows.
  • Decal has clear background.
  • This Cool Decal Measures 3"(H) x 5"(W)
  • CCOT's Minimum Order Size is $20
  • $1.47
    HFS Sticker
    "Related Item"
    "Related Item"
    "Related Item"
    "Related Item"
    "Hell For Stout Hats"
    "Hell For Stout Hats"
  • High Quality Hats
  • Top quality Hats made by Imperial Headwear
  • Short Run Limited Quantity
  • Click to visit "HFS" Hats
  • Shackles & Bushings
    Springs Lifts Shocks
