Home > CCOT's New Products > Lift Kit-FJ40-'80-'84

FJ40x HFS™ Extreme 4" Lift Springs, above fit 8/80-10/84, Series 40/42

Lift Kit-FJ40-'80-'84






































HFS™ Lift Springs Installed w/1.5" HFS "Barbell" Shackles & HFS™ "Leveler" Block.

HFS™ Lift Springs made in both 2.5" & 4" Lifts.

HFS™ Springs are designed and fitted exclusively for the Vintage Land Cruiser!

HFS™ springs have superior design features to Lift and Soften Ride.

HFS™ Springs are engineered slightly longer to push shackles out and away from axels allowing shackles to swing as springs flex. Proper spring shackle angle creates a much softer ride, reduced leaf stress and improves spring durability.

To maintain the "Ideal Shackle Angle" requires a much heavier and beefier spring stack than other stiff riding lifts offer.

HFS™ Lift Springs are Heavier and "Softer" riding than any other Land Cruiser Lift Spring on the Market.

Shackle Angle - ideal
Shackle Angle - ideal
HFS Springs push shackles out and away from axel allowing shackle to swing & flex. Proper shackle angle creates a softer ride and improves steering control.
4WD Toyota Owners
Lift Kit - FJ40x HFS™ Extreme - 7/80-10/84- 4" Lift Kit
Lift Kit - FJ40x HFS™ Extreme - 7/80-10/84- 4" Lift Kit

CCOT's New 4" Lift for Late Model 40 Series

Fits FJ40 - BJ40/42 - 7/'80 - 10/'84

HFS Superior Spring Design Features.

Lift Kit Includes:
(2ea) CCOT-HFS-40F Front Leaf Springs
(2ea) CCOT-HFS-40R Rear Leaf Springs
(2) HFS4055875 HFS Front Shocks w/Boots
(2) HFS4055650 HFS Rear Shocks w/Boots
  • Shocks require use of your old pins
    (24ea) Poly Spring Bushings
    (8) U-Bolts - Yellow Zinc w/Nuts & Washers, Front & Rear Axles

    "HFS" Spring Features, Click

    Want even more Lift? Install HFS Lift Shackles... a great looking accessory that adds more Lift ~ a great looking accessory that adds more Lift, Strength and Safety, however extended brake lines or other adjustments may be required. HFS Shackles come in 1.5" and 2.5" heights and are required to give clearance to the HFS spring's full military wrap...

    "HFS Leveler Block Sold Separately:" Cure the Driver's Side Lean of most FJ40s. CCOT designed and extensively tested our HFS Leveler Block FORMULA on many FJ40s. We found that our HFS Leveler Block cured the lean on all test vehicles. Block is pre-installed on top of the rear passenger's side spring stack. The "Leveler Block" is an exclusive CCOT product.

    See "Toyota Trails" Article ~ featuring CCOT's New 4" Lift ~ HFS 40x Extreme Springs featured in 2004 Sept/Oct Issue ~ Click for Article.

    "HFS Leveler Block" cures the Driver's Side Lean of most FJ40s. CCOT designed and extensively tested our HFS Leveler Block FORMULA on many FJ40s. We found that our HFS Leveler Block cured the lean on all test vehicles. Block is pre-installed on top of the rear passenger's side spring stack. The "Leveler Block" is an exclusive CCOT product.


    "HFS" & "BDS" Spring Installation Instructions, Click

    View "Hell for Stout" Spring Warranty, Click

    Mount Front Springs with long side away from axle toward the front of the vehicle.

    Mount Rear Springs with long side away from axle toward the rear of the vehicle.

    HFS Springs are "Lift Springs" not "Overload Springs".

    FYI: 4" HFS lift on 15" x 33" tires stands about 81" tall (w/hardtop).
  • Regular price: $1,351.43
    Sale price: $1,270.61
    HFS-4"Lift-Kit-80/84-FJ40x

    Boots:

    60-Bushings:
    Springs FJ40x HFS™ Extreme - 8/80-84 - 4 ea
    Springs FJ40x HFS™ Extreme - 8/80-84 - 4 ea


    Finally! FJ40x HFS Extreme Lift Springs for the Late
    Model 40 Series with 4" Lift.

  • Lift height may vary depending on set-up.

  • Springs Fit: FJ40 & BJ40/42 - 8/'80 to 10/'84

  • Stock Spring Eyes Diameter

  • Stock Bushing Size

  • Stock Bolt / Pin Diameter

    HFS Lift Springs are Heavier and "Softer" riding than any other FJ40 Lift Spring.

    "HFS" Spring Features, Click

    Want even more Lift? Install HFS Lift Shackles... a great looking accessory that adds more Lift, Strength and maximizes wheel travel off road, however extended brake lines or other adjustments may be required. HFS Shackles come in 1.5" and 2.5" heights and are required to give clearance to the HFS spring's full military wrap...

    See "Toyota Trails" Article ~ featuring CCOT's New 4" Lift ~ HFS 40x Extreme Springs featured in 2004 Sept/Oct Issue ~ Click for Article.

    See "4WD Toyota Owners Article ~ featuring CCOT's New 4" Lift ~ HFS 40x Extreme Springs featured in 2010 Sept/Oct Issue ~ Click for Article.


    "HFS Leveler Block" cures the Driver's Side Lean of most FJ40s. CCOT designed and extensively tested our HFS Leveler Block FORMULA on many FJ40s. We found that our HFS Leveler Block cured the lean on all test vehicles. Block is pre-installed on top of the rear passenger's side spring stack. The "Leveler Block" is an exclusive CCOT product.
    "HFS" & "BDS" Spring Installation Instructions, Click

    View "Hell for Stout" Spring Warranty, Click

    Mount Front Springs with long side away from axle toward the front of the vehicle.

    Mount Rear Springs with long side away from axle toward the rear of the vehicle.

    HFS Springs are "Lift Springs" not "Overload Springs".

  • A minimum shackle height of 1.5" is recommended so that full wrap of spring eye has clearance between spring pins. HFS springs were designed to fit with shackles 1.5" and greater over stock shackle height.

    FYI: 4" HFS lift springs on 15" x 33" tires stands about 81" tall (w/hardtop).
  • Regular price: $1,109.92
    Sale price: $1,085.30
    HFS40-Springs-80-84
    Leveler Block HFS™ -  FJ40 Lean Aid w/Pin
    Leveler Block HFS™ - FJ40 Lean Aid w/Pin

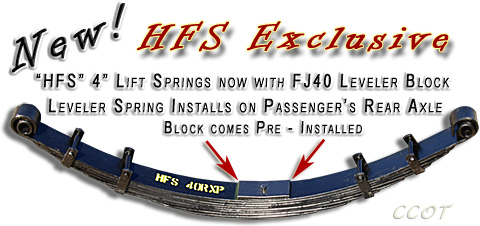

    "HFS Leveler Block" cures the Driver's Side Lean of most FJ40s. Leans vary from Cruiser to Cruiser depending on spring age and type. CCOT designed and extensively tested our HFS Leveler Block FORMULA on many FJ40s. We found that our HFS Leveler Block cured the lean on all test vehicles with new springs. Block w/Pin (4" x 3/8") installs on top of the rear passenger's side spring stack. Add HFS Leveler Block to top of spring stack (like an additional top leaf) and bolt down with spring center pin.

    Note: The leveler block pin head diameter is 9/16"

    The threaded pin bolt diameter is 3/8"

    The "Leveler Block" is an exclusive CCOT product.


    Note: One Customer with a 1964 FJ40 had a lean on the Passenger's side (instead of the Driver's side) and had to install his leveler block on the rear Driver's side to level his vehicle. In his case, the rear spare tire rack was on the Passenger's side (opposite of later models) instead of the Driver's side. So, the theory is that the block installs on the rear spring on the opposite side of the lean and in his case the opposite side of his rear tire rack.

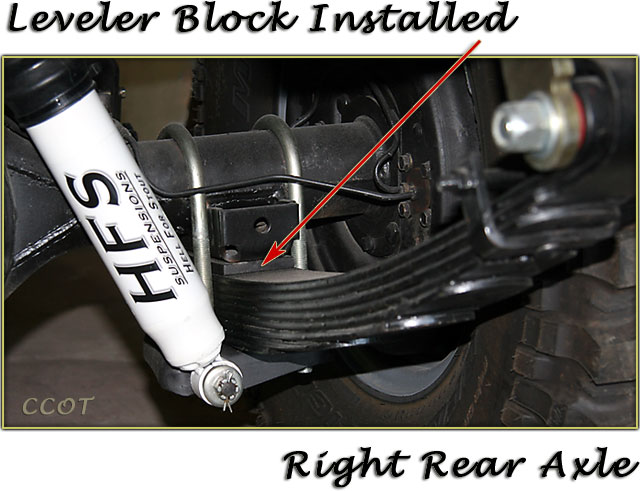

    Blue FJ40 pictured below has CCOT Leveler Block installed. see "NO LEAN"



    Click Image
    $22.61
    LevelerBlock
