CCOT Quarter Panels ~ Die Cut

Quarter Panels

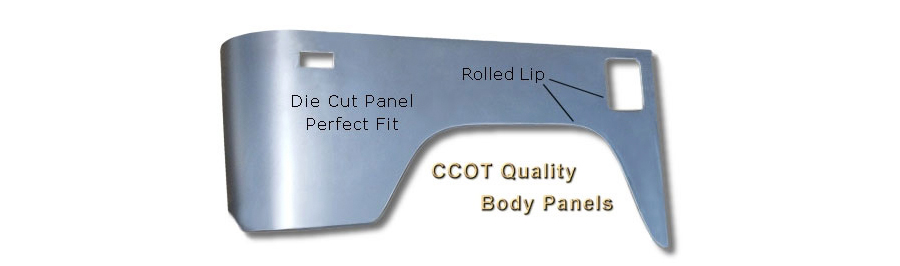

CCOT builds the highest quality quarter panel available.

  • CCOT quarter panel blanks are production diecut for perfect accuracy, then panel corner radius is formed and edges rolled.

    Coverage area: Quarter Panels begin at seam line just behind front doors and continue back forming corner radius and extending to overlap rear door opening. Bottom edge of Quarter Panel is a rolled lip just like factory panel. Top edge of Quarter Panel is designed flat and straight to install just below upper quarter channel. Gas tank opening has rolled edge (like factory) and marker light cut outs are included for years 1973 thru 1984. Older models ('72 and older) have no gas tank cut out or marker light cut outs. Made of new 16 gauge cold roll steel.

  • Quarter Panel Finished in the "Raw", Click for Description...
  • Click for Zero Rust, The Ultimate, Convenient Panel Protection....
  • Click, POR-15 not only stops rust, but will Prevent it from Returning...


  • Body Panel Production Tme
    "Related Item"
    Quarter Panel Inside View - 1/'79 to 10/'84
    Quarter Panel Inside View - 1/'79 to 10/'84
  • See the detail of a CCOT panel.
  • Quarter Panel Inside View - 10/'69 to 12/'78
    Quarter Panel Inside View - 10/'69 to 12/'78
  • See the detail of a CCOT panel.
  • Quarter Panel Inside View - '58 to 10/'69
    Quarter Panel Inside View - '58 to 10/'69
  • See the detail of a CCOT panel.

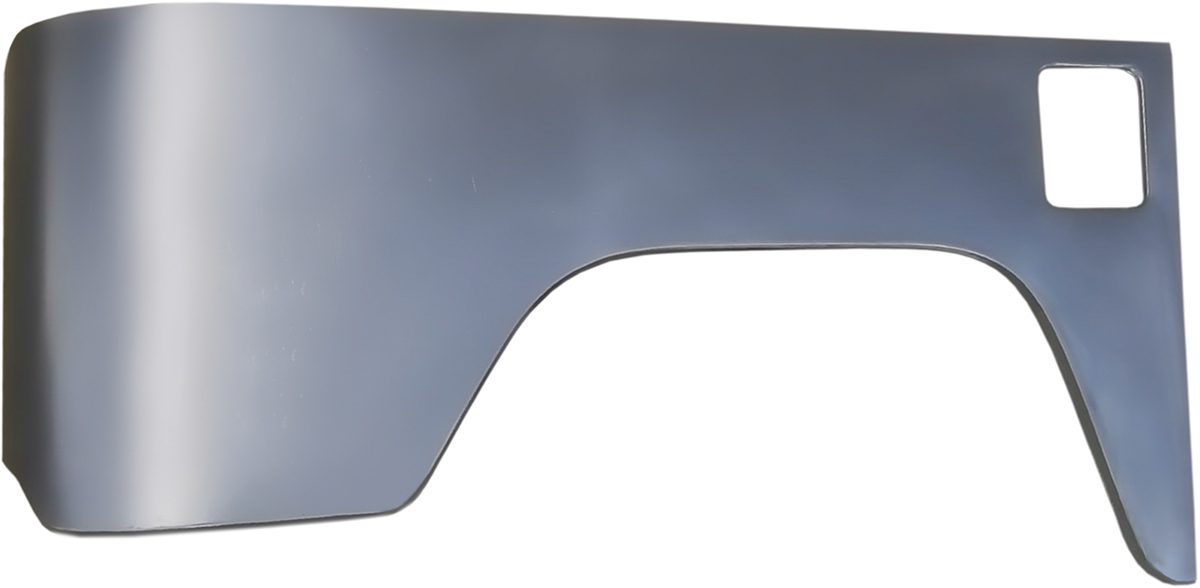

  • Quarter Panel 1/'79 to '84  ~ Cold Roll Steel
    Quarter Panel 1/'79 to '84 ~ Cold Roll Steel
  • STEEL, Panel "In the Raw"
  • Emergency Brake is on Floor of '79 to 84 Model
  • Note: System will add $12.00 to base price for gas door opening.
  • Regular price: $174.95
    Sale price: $159.81
    QTRFJ407984
    Side:

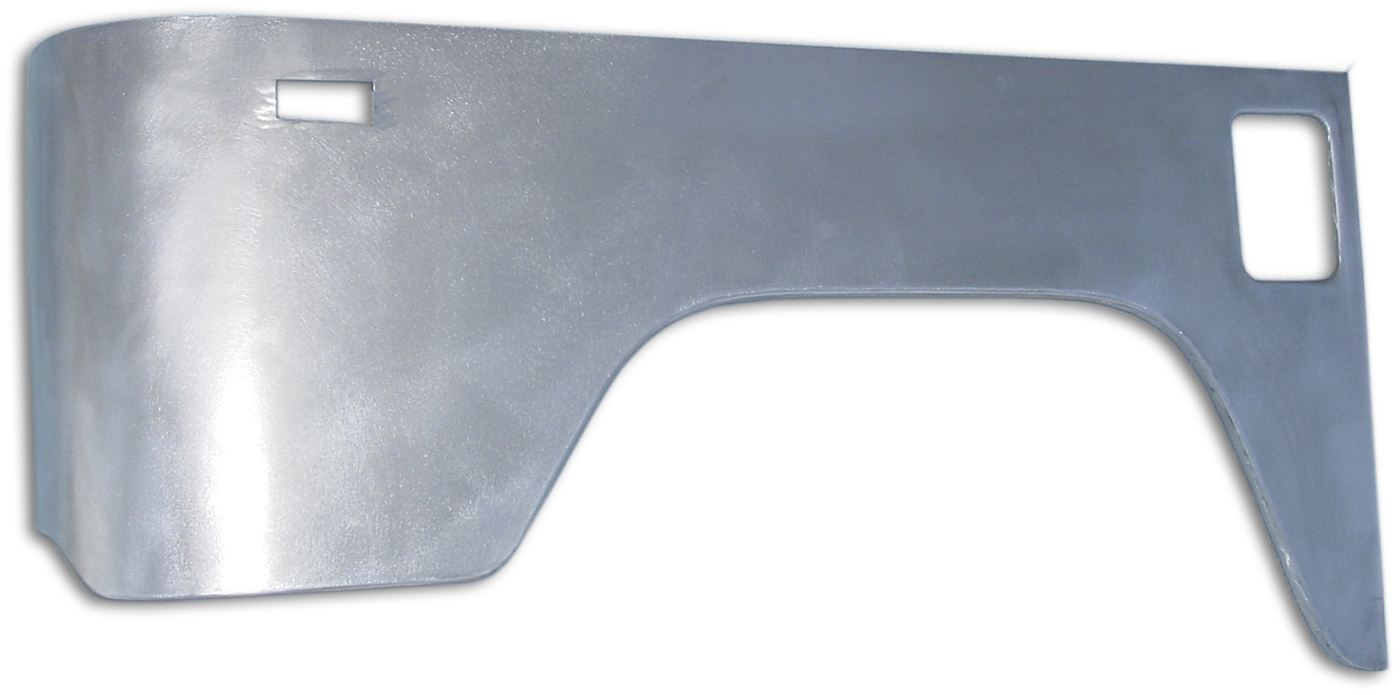

    Quarter Panel 10/'69 to 12/'78  ~ Cold Roll Steel
    Quarter Panel 10/'69 to 12/'78 ~ Cold Roll Steel
  • STEEL, Panel "In the Raw"
  • Select Production Date and Side

    Note: 10/69-12/72 does not have the gas tank door opening cut-out.

  • System will add $12.00 to base price for gas door opening.
  • Regular price: $174.95
    Sale price: $159.81
    QTRFJ407378

    Year :

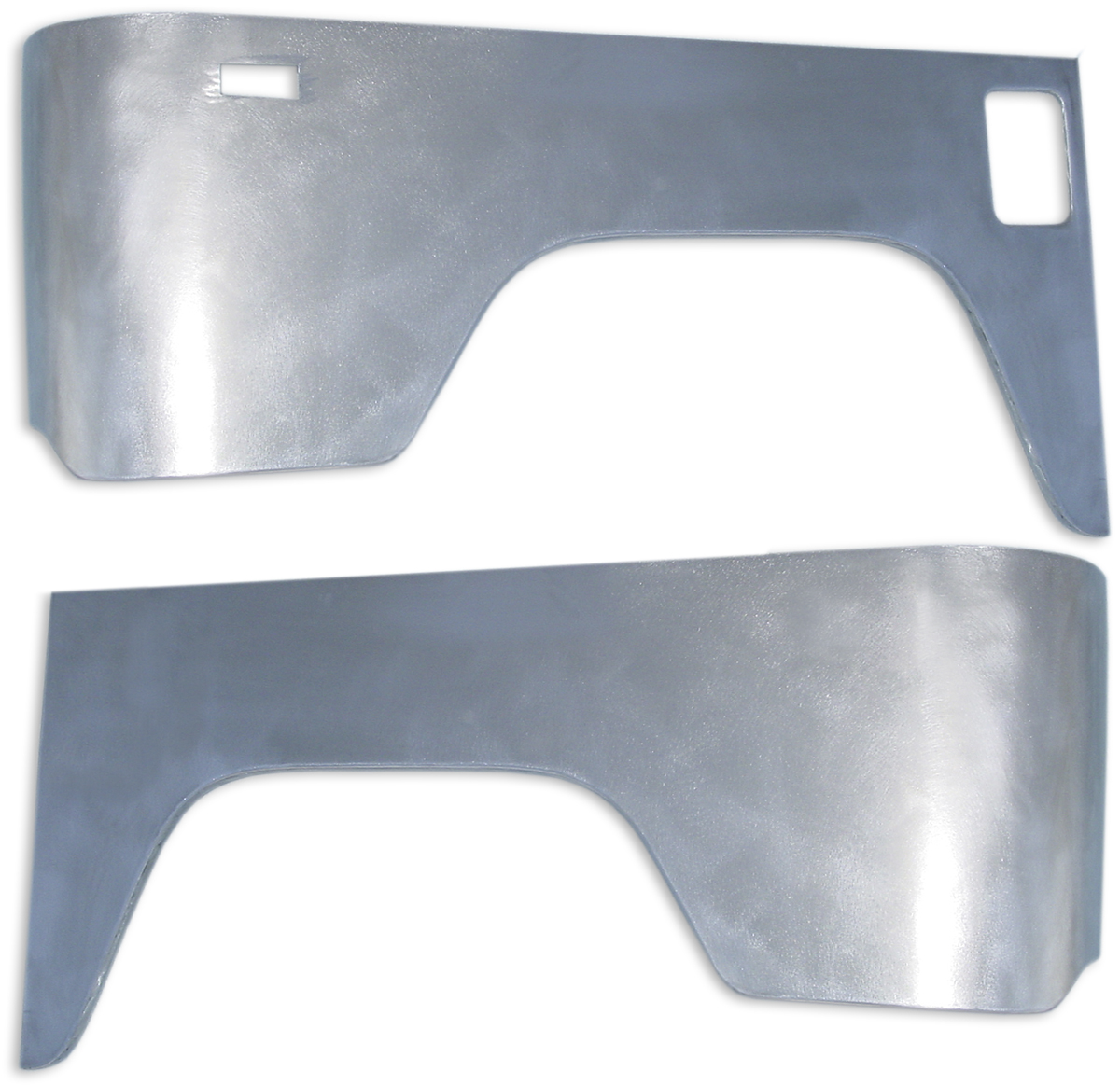

    Quarter Panels -  FJ40 - 10/'69 -12/'78 - Pair
    Quarter Panels - FJ40 - 10/'69 -12/'78 - Pair
  • Quarter Panel Sale - Hurry! Limited Quantity Available.
  • Sold in Pairs Only.
  • Visit our Quarter Panel Page for Quarters sold individual.
  • STEEL Panel "In the Raw" w/Light Oil Coating
  • Emergency Brake pull is under Dash of a '72 to '78 Model.

    Note: 10/69-12/72 does not have the gas tank door opening cut-out.

    See Backside
  • Regular price: $349.90
    Sale price: $296.71
    QTR40-73-78-PAIR

    Year:

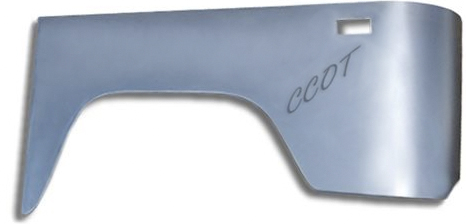

    Quarter Panel '58 to 10/'69 ~ Cold Roll Steel
    Quarter Panel '58 to 10/'69 ~ Cold Roll Steel
  • No Gas Tank Cut Out or Marker Light Cut Out
  • STEEL, Panel "In the Raw"
  • Regular price: $164.95
    Sale price: $149.81
    QTRFJ405872
    Side:
    Body Panel Installation
    Simple Jig
    Simple Jig
  • Keep tub square while installing panels.
  • Panel Installation Instructions
    Panel Installation Instructions
  • Quarter Panel Installation Instructions.
  • Attach Panels
    Attach Panels
  • Quarter Panel Spot Welding
  • Customer  Attaching Quarter Panel
    Customer Attaching Quarter Panel
  • Steps for Attaching Quarter Panel
  • Attaching Fuel Neck Housing
    Attaching Fuel Neck Housing
  • Click photo to enlarge
  • Spot Weld your fuel neck housing
    to the backside of new quarter panel.
  • "Related Item"
    "Related Item"
    Gas Cap ~  Locking ~  w / 2 Keys
    Gas Cap ~ Locking ~ w / 2 Keys
  • Fits FJ40 factory filler neck - 9/'72-8/'76
  • Note: Will not fit CCOT's aftermarket filler
    neck unless unleaded reducer portal is removed.
  • Fits FJ60 ~ FJ62 ~ 8/'80-'90
  • Ideal for FJ40 without locking Gas Tank Door
  • Complete with 2 Keys
  • Operates locked or unlocked
  • Seals tight
  • High Quality Cap - Guaranteed
  • CCOT's Minimum Order Size is $20
    Currently Not Available, Out of Stock
  • Regular price: $20.63
    Sale price: $15.97
    CCOT ~ Body Panels ~ Since 1989


  • CCOT Body Panels ~ Get More Features for the Money !
  • CCOT ~ 1st to Produce L/C Body Panels ~ 1989
  • CCOT ~ We Warrant a proper panel fit.
  • CCOT ~ Body Panels are Complete with flanges & easy installment features.
  • CCOT ~ We Show Pictures and Details of our Panels. See the Value!
  • CCOT ~ Toll Free Customer Support ~ 800-475-4181
  • CCOT ~ Panels are the Best ~ No other panels compare ~ Just ask Others.
