CCOT Seat Belts - Safety with Comfort !

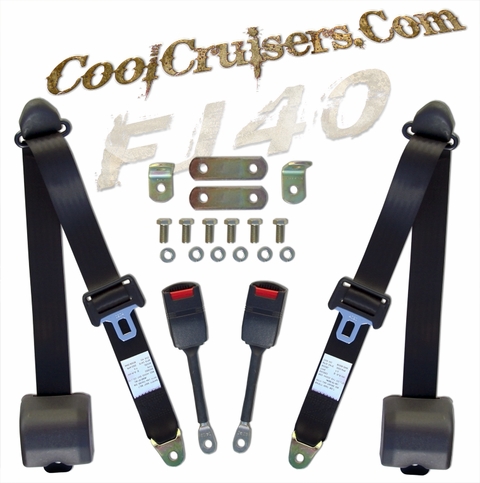

Seat Belts FJ40



































Replace existing damaged or worn Belts perfectly... Set of 4, includes two shoulder harness belts and two lap belts for rear jump seats (all new hardware included). Replace worn belt (using factory fittings)... Complete!

  • Seat Belts Fit '73 to '84 however, belts can be made to fit any older FJ40 with roll bar...

  • Note: older models can be fitted with shoulder harness belts, however roll bar is required to attach shoulder harness retractor. See Installation Pics below...

    We install this Seat Belt Set in 100% of our Cool Cruiser Restorations. These belts are Custom Manufactured for Cool Cruisers and we have refined their look and function over the years to be a great compliment to the FJ-40... A Proven Part that attaches to all original bolt holes and strongly renews appearance of interior...

  • NOTE: Shoulder Harness System is designed to mount to roll bar only... not side wall of hard top... this allows removal of hard top to retain use of shoulder harness ... this is a better idea (over looked by Toyota); for some model FJ40s shoulder harnesses mounts to side wall of hard top and therefore you cannot remove hard top without loss of front seat belts...

  • ALL Belts Meet FMVSS 209-302 Specifications (Federally Compliant)

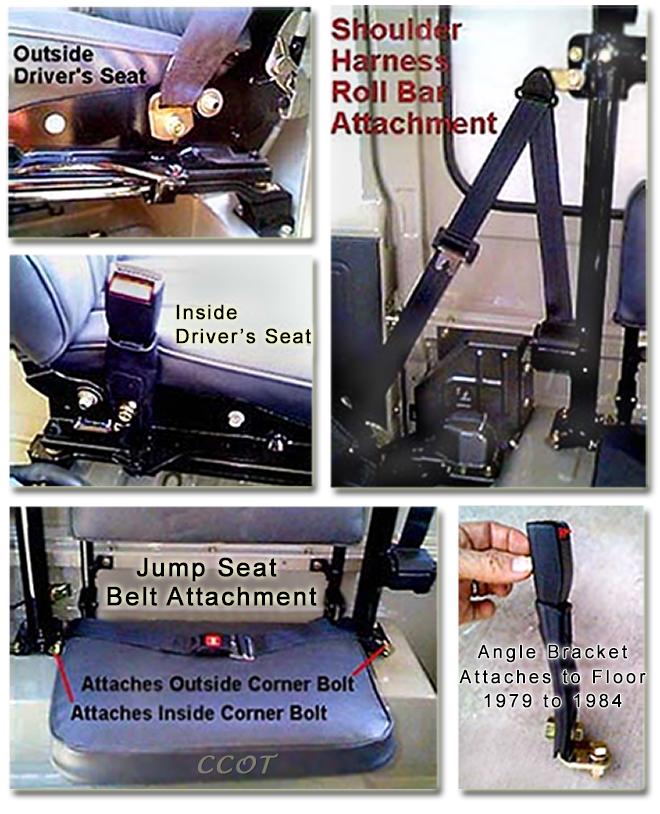

  • <LI>Standard Set Up, Click Pic to Enlarge
  • Standard Set Up, Click Pic to Enlarge
  • Seat Belt, Installation of Shoulder Harness and Rear Jump Seat Lap Belts.

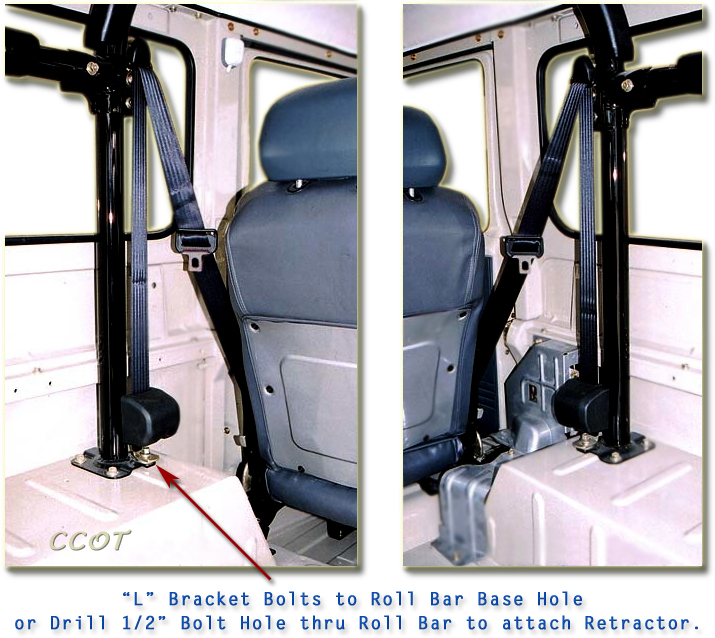

  • <LI>Special Set Up, Click Pic to Enlarge
  • Special Set Up, Click Pic to Enlarge
  • Shoulder Harness Retractor attached to Roll Bar Base by "L" Bracket.
  • "L" Bracket mount is only needed if Roll Bar does not have bracket for seat belt retractor to attach.
  • "L" Bracket Included With All Seat Belt Orders

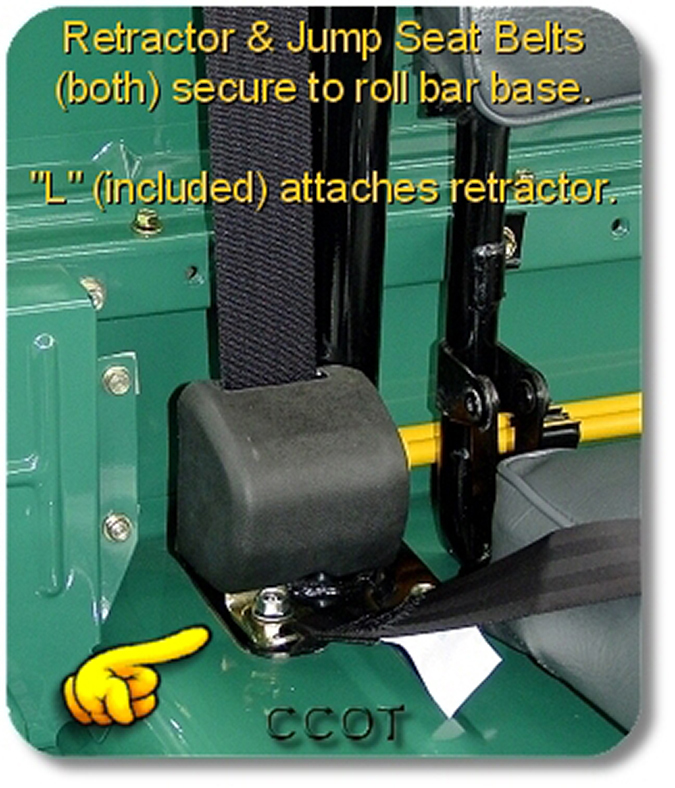

  • Retractor & Jump Seat Belt Attachment
    Retractor & Jump Seat Belt Attachment
  • Click Photo to Enlarge
  • Special Set up
  • Retractor & Jump Seat Lap Belt Bolt to Roll Bar Base.
  • Retractor Requires "L" Bracket to attach.

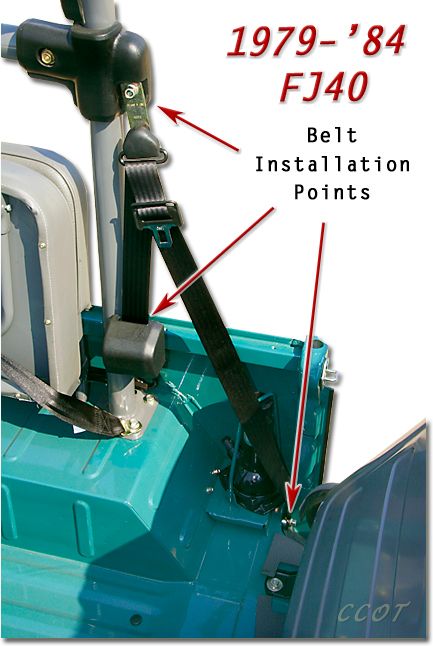

  • Seat Belt Installation - 1979 to 1984
    Seat Belt Installation - 1979 to 1984

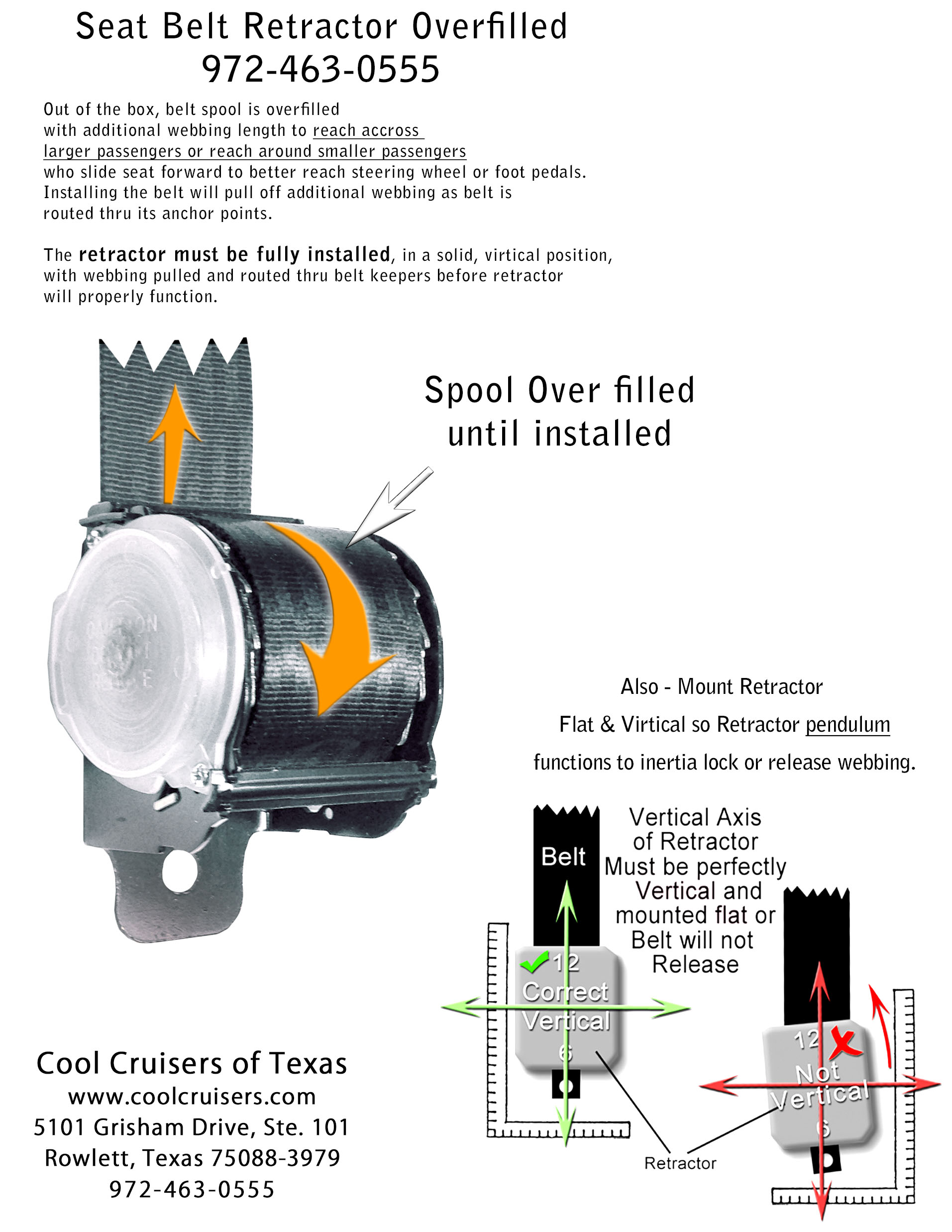

    Mount Seat Belts Vertical and Flat
    Mount Seat Belts Vertical and Flat
    Mount seat belts perfectly vertical and flat, otherwise retractor will not lock as designed.
    Shoulder Harness Attachment  Points
    Shoulder Harness Attachment Points
  • Click to Enlarge Diagraph

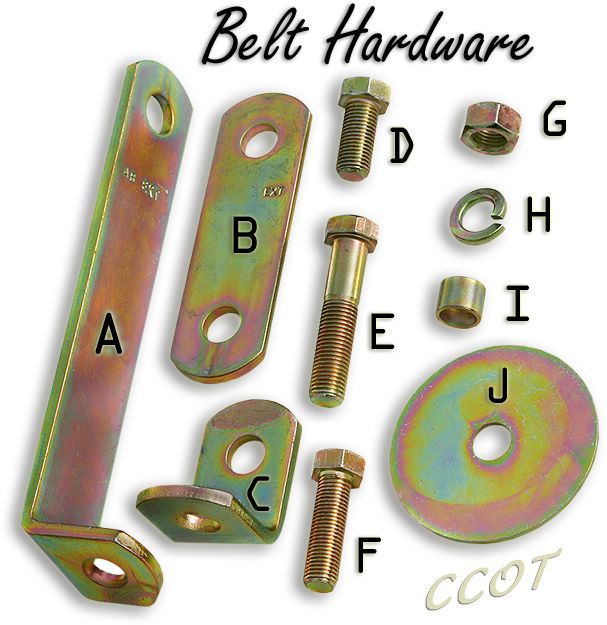

  • Seat Belt Hardware
    Seat Belt Hardware
  • Hardware for special applications.
  • "A" - 6" Riser Bracket - 1-1/4" W x 5-1/2" L
  • "B" - 3" Strap Extension - 9/16" holes
  • "C" - L Bracket - 9/16" holes
  • "D" - 1" Bolt (1" x 7/16" x 20 GR.5 YZP)
  • "E" - 2" Bolt (2" x 7/16" x 20 GR.5 YZP)
  • "F" - 1.5" Bolt (1.5" x 7/16" x 20 GR.5 YZP)
  • "G" - 7/16" Hex Nut YZP
  • "H" - Split Lock Washer - 7/16"/10.5mm
  • "I" - Swedish Spacer -
  • "J" - 2 1/2" w/ 7/16" hole - Reinforcement Plate Washer

    NOTE: System will add to base price ($.50) for cost of hardware selected.
  • $0.50
    SeatBelt- Hrdw
    Select:

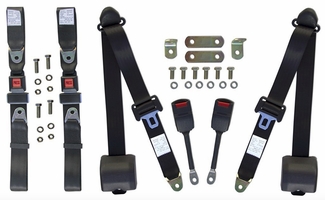

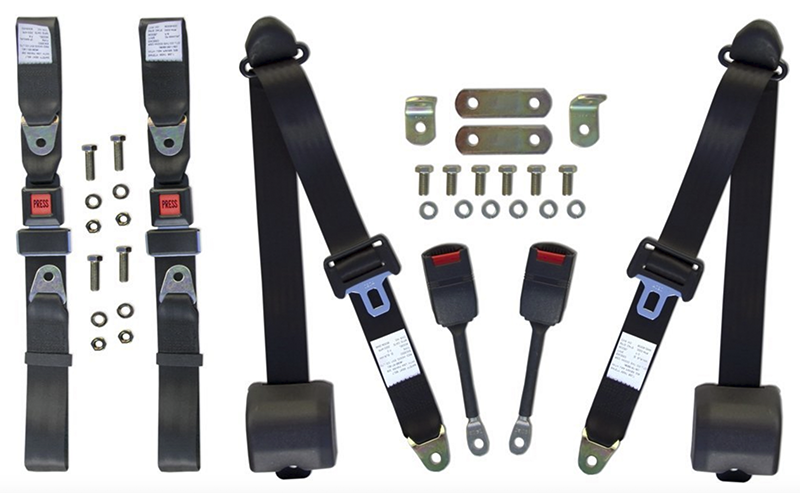

    Seat Belts - 73-84 - FJ40 - Set of 4 - Aft Mrkt
    Seat Belts - 73-84 - FJ40 - Set of 4 - Aft Mrkt
  • FJ40 - BJ40 Set of 4 Belts with traditional push button buckles
  • 2 Front Retractable Shoulder Harnesses
  • 2 Rear Jump Seat Lab Belts
  • Belt Mounting Hardware
  • Belts can be made to fit any older FJ40 with roll bar
  • Belts install to factory mounting points
  • Easy Installation. See instructions, above
  • ALL Belts Meet FMVSS 209-302 Specifications (Federally Compliant)
  • CCOT Seat Belts - Safety with Comfort !

  • $209.95
    S013021 + S013062

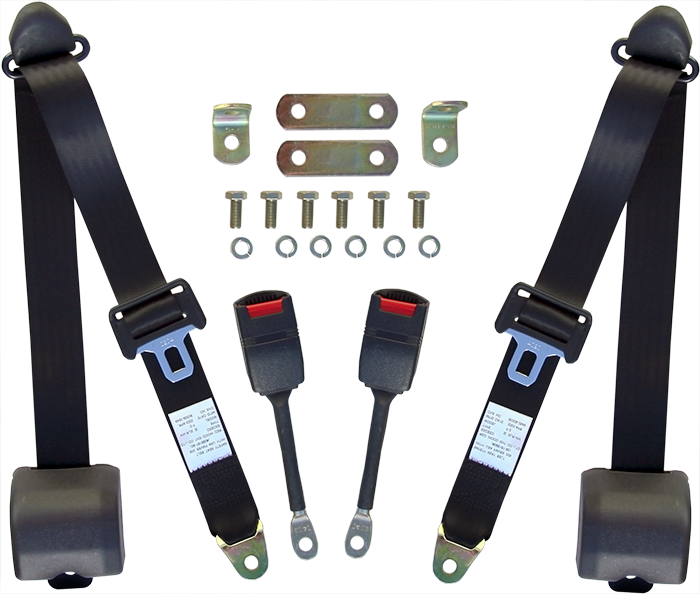

    Seat Belts - 9/72-84 - FJ40 - Pair - Shoulder Harnesses - Aft Mrkt
    Seat Belts - 9/72-84 - FJ40 - Pair - Shoulder Harnesses - Aft Mrkt
  • This FJ40 Belt Set Includes
  • 2 Front Retractable Shoulder Harnesses w/Push Button Buckles
  • Belt Mounting Hardware
  • Easy Installation, Instructions, above
  • Belts install to factory mounting points
  • Emergency retractor locks on impact
  • Locking retractor for security in the event of an accident.
  • Belts can be made to fit any older FJ40 with roll bar
  • ALL Belts Meet FMVSS 209-302 Specifications (Federally Compliant)
  • CCOT Seat Belts - Safety with Comfort !
  • $189.95
    S013021
    Seat Belt - Retractable Lap Belts - fits - 9/'72 - '73 - Pair
    Seat Belt - Retractable Lap Belts - fits - 9/'72 - '73 - Pair
  • Retractable lap belts fit 9/'72 - '73 40 Series with factory bucket seats.
  • This FJ40 Belt Set Includes
  • 2 Front Retractable Lap Belts w/Push Button Buckles
  • Belt Mounting Hardware for retractor side. Use original hardware for buckle side.
  • Easy Installation, Instructions, above
  • Emergency retractor locks on impact
  • Locking retractor for security in the event of an accident.
  • ALL Belts Meet FMVSS 209-302 Specifications (Federally Compliant)
  • CCOT Seat Belts - Safety with Comfort !
  • $111.71
    SO13100

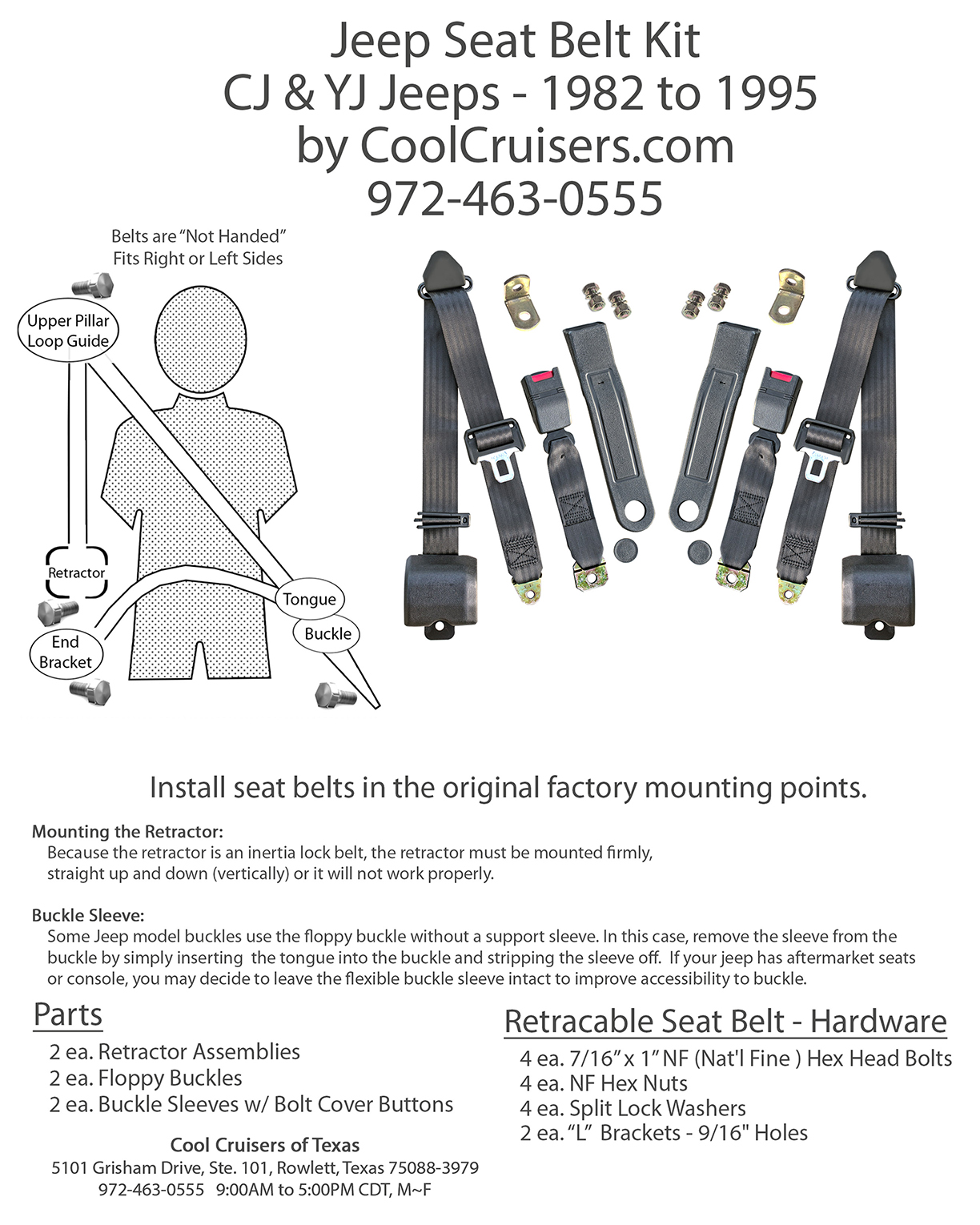

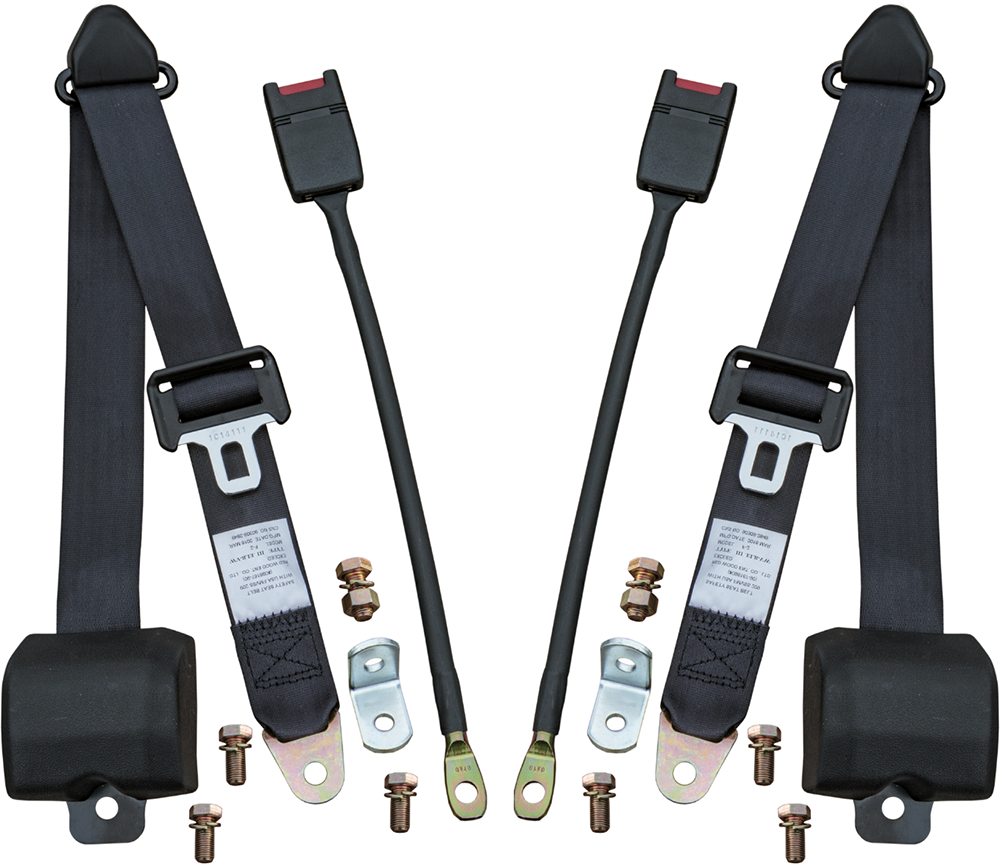

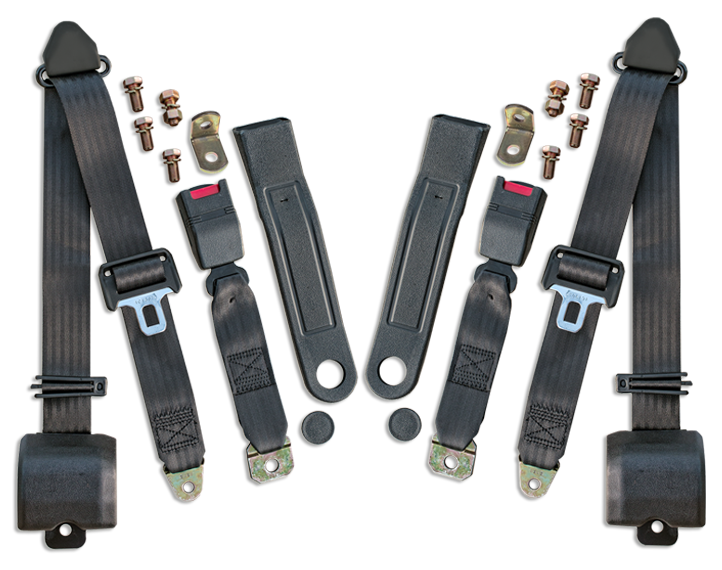

    Seat Belts - Jeep - '82-'95  - Pair - Shoulder Harnesses - Aft Mrkt
    Seat Belts - Jeep - '82-'95 - Pair - Shoulder Harnesses - Aft Mrkt
    3-Point Seat Belt kit fitted specifically for CJ & YJ Jeeps, 1982 to 1995.

    Belt Kit Includes:

    2 Front Retractable Shoulder Harnesses w/11.5" Push Button Buckles

    Belt mounting hardware included

    Belts mount to factory fittings

    Emergency retractors locks on impact

    Cool Cruisers Seat Belts - Safety with Comfort !

  • ALL Belts Meet FMVSS 209-302 Specifications (Federally Compliant)

  • CCOT Seat Belts - Safety with Comfort !

    Note: Some Jeep models may require the 6" Riser Bracket (shown) to raise the floor buckle up between the center console and lower seat cushion so that the shoulder harness tongue can easily snap into the floor buckle.
    Currently Not Available, Out of Stock
  • Regular price: $189.95
    Sale price: $127.71
    "Related Item"

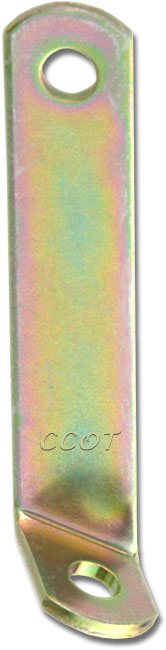

    Seat Belt  Extension - 6" Riser Bracket
    Seat Belt Extension - 6" Riser Bracket
  • 6 Inch Seat Belt Buckle Extension Bracket
  • Bracket dimensions are: 1-1/4" W x 5-1/2" L.
  • 6" Riser Bracket fits 3 Point Belts
    There are some seat and console configurations where it may
    help to raise the buckle to improve access to buckle.
  • $6.50
    Belt-Risr-Brkt-6"
    Visor Blades - Only - No Hrdwr  - Pair - FJ40 - 9/72-10/84 -  Aft Mrkt
    Visor Blades - Only - No Hrdwr - Pair - FJ40 - 9/72-10/84 - Aft Mrkt
    Currently Not Available, Out of Stock

  • FINALLY! - New Visor Replacement Blades
  • Fits 09/'72 to 10/'84 ~ FJ40 & FJ45
  • Color Off-White
  • New CCOT Visors are a must to renew interior.
  • Requires your original Visor hardware.
  • Hardware Not Included.
  • Set screw tightens Visor to desired blade tension.
  • A Great and affordable solution to $$$OEM Visors.
  • Visors are a CCOT Exclusively Developed Part.

    Note: Visor blades are not handed. Blade fits Right or Left sides causing set screw to face in or out, per photo.

    Installation Tip: Remove old visor hardware from vehicle and lay new visor(s) on a flat table (to support & back the visor blade) then, apply pressure to the visor blade clamp to achieve a square path for set screw to align with machined internal nut. The support of the table will square the nut to the set screw. This alignment can be hard to achieve if you try to install the new blade to hardware still mounted to windshield frame.
