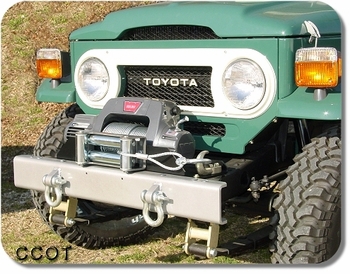

NEW! WARN 9.5ti Thermometric Winch
The WARN 9.5ti Thermometric provides 9500 pounds of pulling capacity. Its alloy housing is sealed at key points for superior water/environmental resistance and provides a shield for the motor wiring. High gloss, chip resistant powder coat finish over chromate coating provides excellent corrosion resistance. Adding to the new winch design is a new indexed connector for the hand-held remote control and an easy-to-use clutch lever.
Internally, the 9.5ti Thermometric winch features the WARN exclusive multi-segment CAM actuated brake, a new Gen II Bosch motor and a rugged 3-stage planetary gear train reduction system. A premier WARN feature is the new motor-mounted thermal sensor which relays instantaneous temperature information to the hand-held winch remote to provide operator feedback while the winch is in operation.
9.5ti THERMOMETRIC SPECS/PART NUMBERS:
Part Number: PN 67550
Rated line pull: 9500 lbs. (4310 kgs.) single-line
Motor: Gen II, Series Wound
Remote Control: Remote switch, 12' (3.7m) lead
Geartrain: 3-Stage Planetary
Gear ratio: 156:1
Lubrication: Aeroshell #17
Clutch (freespooling): Sliding Ring Gear
Brake: Automatic Direct Drive Cone
Drum diameter/Length: 2.5"/9.0" (6.4cm/23cm)
Weight: 89 lbs. (36.3kgs.)
Wire rope: 125', 5/16" diameter (30m, 8mm diam.)
Recommended Battery: 650 CCA minimum for winching
Battery leads: 2 gauge, 72" (1.83m)
Finish: Chromate with high-gloss powder coat
Nuts/bolts: PN 39625
CE winches: CE products are designed to meet European Standards. CE winches include CE labels, Manuals, Power Interrupt Kit, Safety Hook and Thimble.
12V DC PERFORMANCE SPECS:
Line Pull Lbs.(Kgs.) 0 2000(910) 4000(1810) 6000(2720) 8000(3630) 9500(4310) Line Speed Ft./min.(M/min.) 62(18.9) 16.3(4.97) 11.8(3.60) 9.31(2.84) 7.59(2.31) 6.67(2.03) Motor Current 47 amps 160 amps 230 amps 305 amps 370 amps 425 amps Pull by layer: layer/Lbs(Kgs.) 1/9500(4313) 2/8650(3927) 3/7920(3595) 4/7400(3359) 5/
